Quick-Coupler of Excavator link


• Durable
• Double safety device with safety pin
• Easily removable coupler shortens working hours

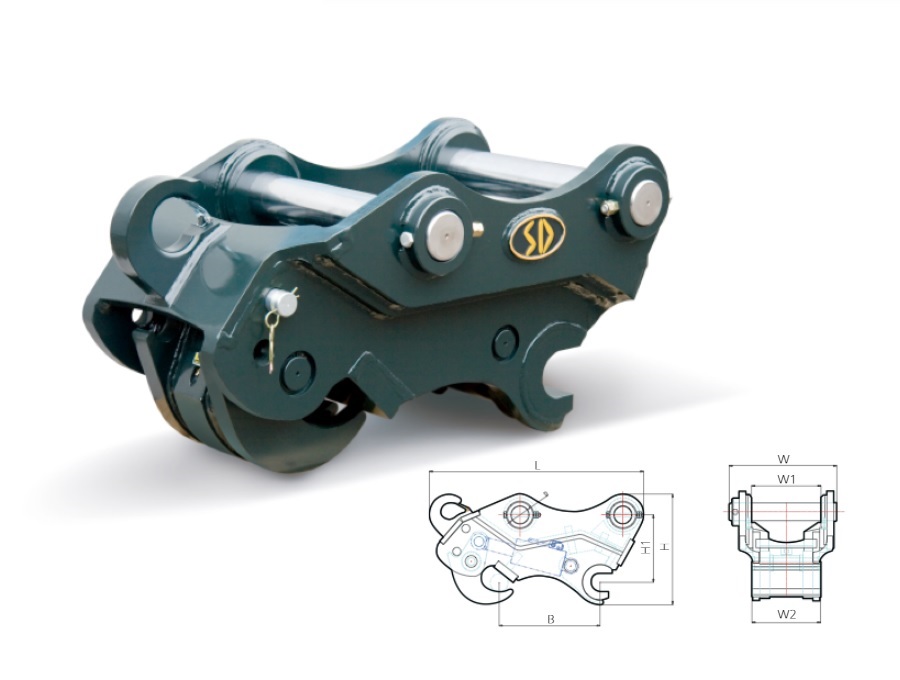

 1-1. Push Type

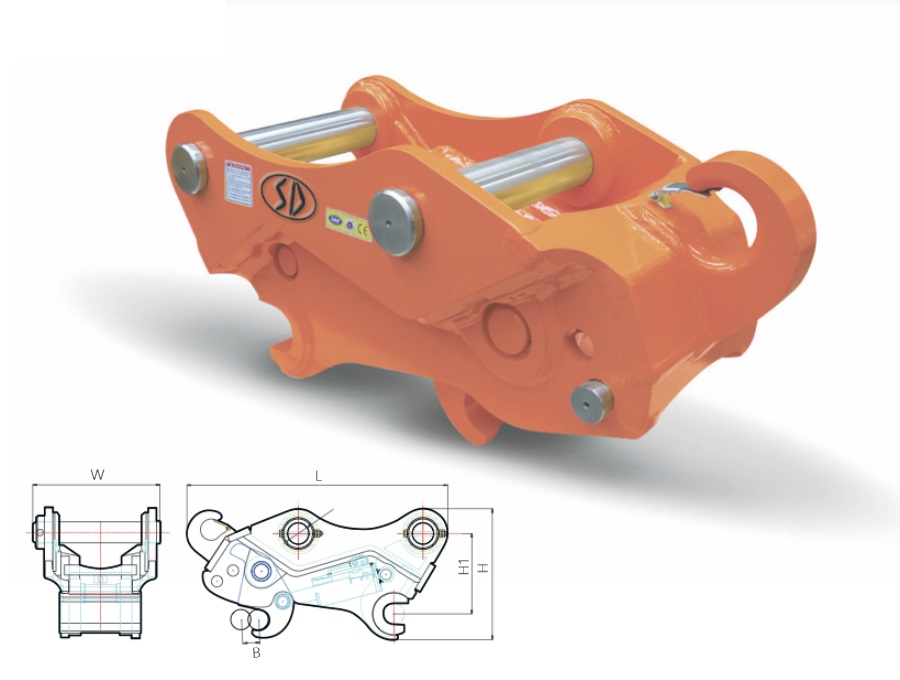

1-2. Pull Type


Тяговий тип

Coupler

Unit

Q 03

Q 06

Operating Weight

kg

54~60

150~163

Length (L)

mm

575~593

814~820

Height (H)

mm

285

378

Width (W)

mm

249~259

408~423

Installation Width (W1)

mm

155~165

260~275












Штовхальний тип

Coupler

Unit

Q 08

Q 10

Q 14

Q 17

Q 20

Operating Weight

kg

340

520

650

725

890

Length (L)

mm

970

1,080

1,125

1,226

1,285

Height (H)

mm

491

552

584

612

662

Width (W)

mm

469~503

543~593

574~624

630~670

680~710

Installation Width (W1)

mm

306~340

350~410

410~432

410~440

470~510
