Products / Attachments for excavators /

Pulverizer (P)

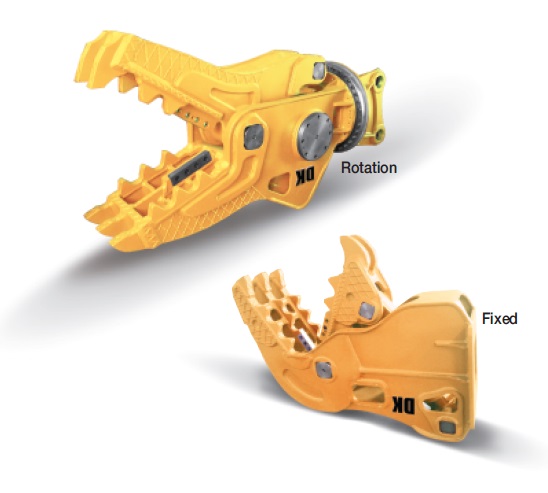

Mounted crusher, 3rd level crusher P Characteristics

Single pin and double cylinder
Zero slippage between two jaws
360° rotation hydraulic motor with double safety valve
Optimized angle and continuous force through the cycle

Pulverizer	Unit	P50R	P150R	P200R	P300R	P150	P200	P300	P400
Operating Weight	kg	550	1,600	2,000	2,600	1,250	1,800	2,350	3,450
Operating Weight	lb	1,213	3,527	4,409	5,732	2,755	3,970	5,180	7,606
Overall Length	mm	1,382	2,035	2,386	2,627	1,582	1,836	1,981	2,336
Overall Length	Inch	54.4	80	94	103	62.28	72.28	77.99	91.97
Max. Opening Width	mm	508	798	886	957	720	850	920	1,150
Max. Opening Width	Inch	20	31	35	38	28.35	33.46	36.22	45.28
Cutting Force at Mid	ton		73	97	134	70	120	195	270
Operating Pressure	kg/cm2	214	250	320	320	300	250	300	320
Operating Pressure	psi	3,046	3,556	4,226	4,550	3,556	4,226	4,550	4,550
Oil Flow Rate	LPM	80 ~ 100	200 ~ 250	250 ~ 300	250 ~ 300	200 ~ 250	250 ~ 300	250 ~ 300	250 ~ 350
Oil Flow Rate	GPM	21.1 ~ 26.4	52.8 ~ 66.1	66.1 ~ 79.2	66.1 ~ 79.2	52.8 ~ 66.1	66.1 ~ 79.2	66.1 ~ 79.2	66.1 ~ 92.5
Suitable Excavator	ton	4.5 ~ 11.0	14 ~ 20	18 ~ 26	26 ~ 32	14 ~ 20	18 ~ 26	26 ~ 32	38 ~ 48
