Products / Attachments for excavators /

Primary crusher S

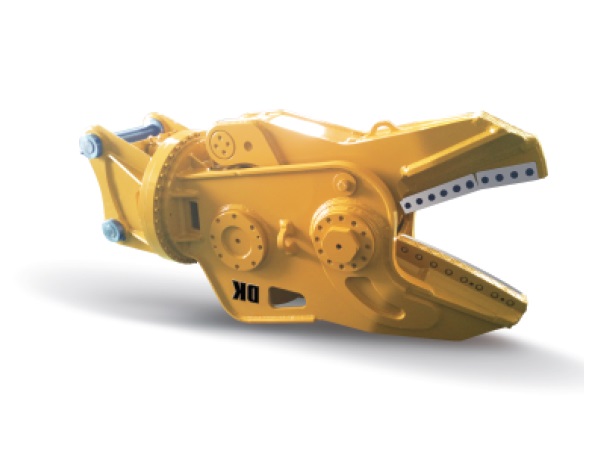

Scrape cutter S

One pin and double cylinder
Zero sliding between two jaws
360° rotation hydraulic engine with double safety valve
Optimized angle and constant force throughout the cycle

Shear	Unit	S100	S200	S301
Operating Weight	kg	500	2,000	2,450
Operating Weight	lb	1,102	4,409	5,401
Overall Length	mm	1,456	1,995	2,174
Overall Length	Inch	57.3	78.54	85.59
Overall Width	mm	665	1,071	1,158
Overall Width	Inch	26.2	42.17	45.59
Max. Opening Width	mm	290	507	571
Max. Opening Width	Inch	11.4	20	22.5
Cutter Length	mm	350	500	600
Cutter Length	Inch	13.78	19.69	23.62
Cutting Force	ton	152	172	270
Suitable Excavator	ton	4.5 ~ 11.0	18 ~ 26	26 ~ 32
