Multi processor crasher M

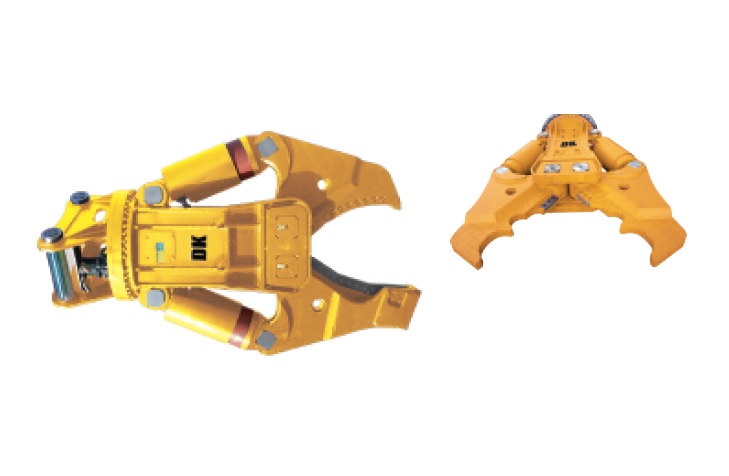

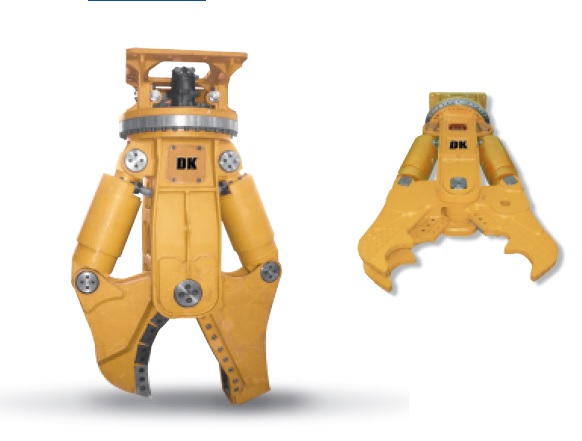

Multi – processor (M)

Two Cylinder Attachment (Jaw exchange)

Pulverizer	Unit	S230R-Ⅱ	C230R-Ⅱ	D230R-Ⅱ	P330R-Ⅱ	S330R-Ⅱ	C330R-Ⅱ	D330R-Ⅱ	P330R-Ⅱ
Operating Weight	kg	1,760	1,680	1,760	1,760	2,900	2,750	2,900	2,900
Operating Weight	lb	3,880	3,704	3,880	3,880	6,393	6,063	6,393	6,393
Overall Length	mm	2,072	1,942	1,956	2,024	2,750	2,660	2,745	2,745
Overall Length	Inch	81.57	76.46	77.00	79.69	108.3	104.7	108	108
Max. Opening Width	mm	522	886	915	890	603	1,163	1,026	968
Max. Opening Width	Inch	20.55	34.88	36	35.04	62.40	45.79	40.4	38.11
Cutting Force at Middle	ton	127	108	127	108	205	175	205	175
Operating Pressure	kg/cm2	300				320
Operating Pressure	psi	4,226				4,550
Oil Flow Rate	LPM	200 ~ 250				250 ~ 300
Oil Flow Rate	GPM	52.8 ~ 66.1				66.1 ~ 79.2
Motor Setting Pressure	kg/cm2	160				160
Motor Setting Pressure	psi	2,275				2,275
Motor Oil Flow Rate	LPM	36 ~ 40				36 ~ 40
Motor Oil Flow Rate	GPM	9.5 ~ 10.5				9.5 ~ 10.5
Revolving Speed	RPM	13 ~ 15				13 ~ 15
Excavator	ton	18 ~ 26				26 ~ 32

Pulverizer	Unit	S201R-Ⅱ	C201R-Ⅱ	D201R-Ⅱ	P201R-Ⅱ	S301R-Ⅱ	C301R-Ⅱ	D301R-Ⅱ	P301R-Ⅱ
Operating Weight	kg	1,760	1,680	1,760	1,760	2,800	2,630	2,800	2,800
Operating Weight	lb	3,880	3,704	3,880	3,880	6,173	5,798	6,173	6,173
Overall Length	mm	2,072	1,942	1,956	2,024	2,434	2,418	2,430	2,430
Overall Length	Inch	81.57	76.46	77.00	79.69	95.83	95.20	95.7	95.7
Max. Opening Width	mm	522	886	915	890	603	1,163	1,026	968
Max. Opening Width	Inch	20.55	34.88	36	35.04	62.40	45.79	40.4	38.11
Cutting Force at Middle	ton	127	108	127	108	197	171	197	171
Suitable Excavator	ton	18 ~ 26				26 ~ 32
