Light (mobile) Gantry Cranes

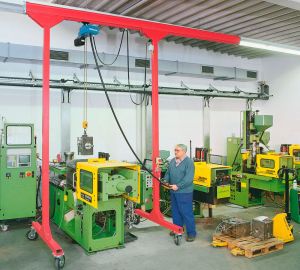

The small mobile gantry crane is simple to design and indispensable in small warehouses, repair shops, assembly shops and other production facilities where you need to save every millimeter of space. Lifting cranes are manufactured under the TM "Crane Build" and TM "Gutman" brands.

In many cases, the use of mini gantry cranes (manual or light gantry cranes) is the most reasonable and economical solution. They are used for loading industrial and agricultural goods, repair and installation work in small workshops, workshops, small covered warehouses and in the open air. They are especially useful for construction work in the field and repair of construction and agricultural equipment in the immediate vicinity of the working area.

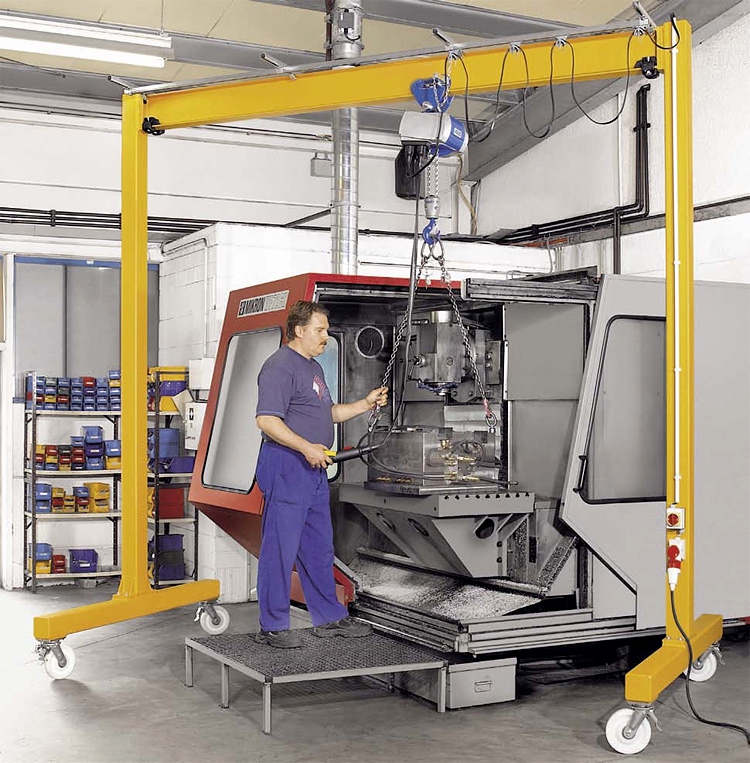

Lightweight gantry cranes are equipped with electric or manual hoists and other lifting mechanisms. They can be installed:

• Manual hoist;
• Electric hoist;
• Manual winches;
• Electric motors with gearbox

TYPICAL DESIGN OF LIGHTWEIGHT MANUAL GANTRY CRANES

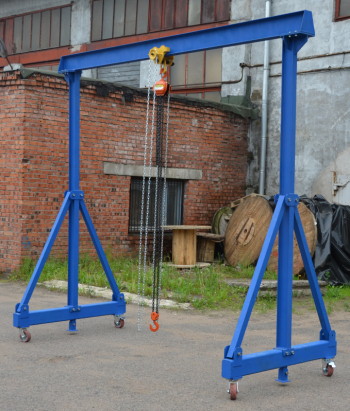

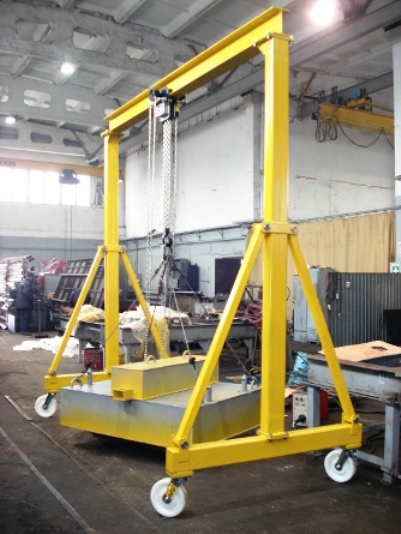

The gantry manual crane consists of two vertical supports with braces, between which a horizontal beam is fixed. The main supporting elements can have different configurations. For racks, mainly tubular or box-shaped structures are used, often of a telescopic type. An I-beam or a pipe of round or rectangular cross-section is installed as a load-bearing bridge.

The choice of the profile of the supporting structures depends on the lifting capacity of the mobile crane and the scope of its use. It is also related to the type of lifting device used.

Manual mobile cranes are very easily assembled by a team of 2-3 people within 30-45 minutes, practically without the use of special complex tools. They consist of 8 - 10 separate parts, which are easily joined and secured with clamps, bolts or special locks.

OPERATION OF MANUAL MOBILE GANT-TYPE CRANES

Gantry cranes with manual hoists are used to lift loads up to 200-300 kg, but when using a mechanical chain hoist with a manual drive or a winch. They are used in car services, warehouses of limited space, hard-to-reach places that cannot be reached by heavy lifting equipment.

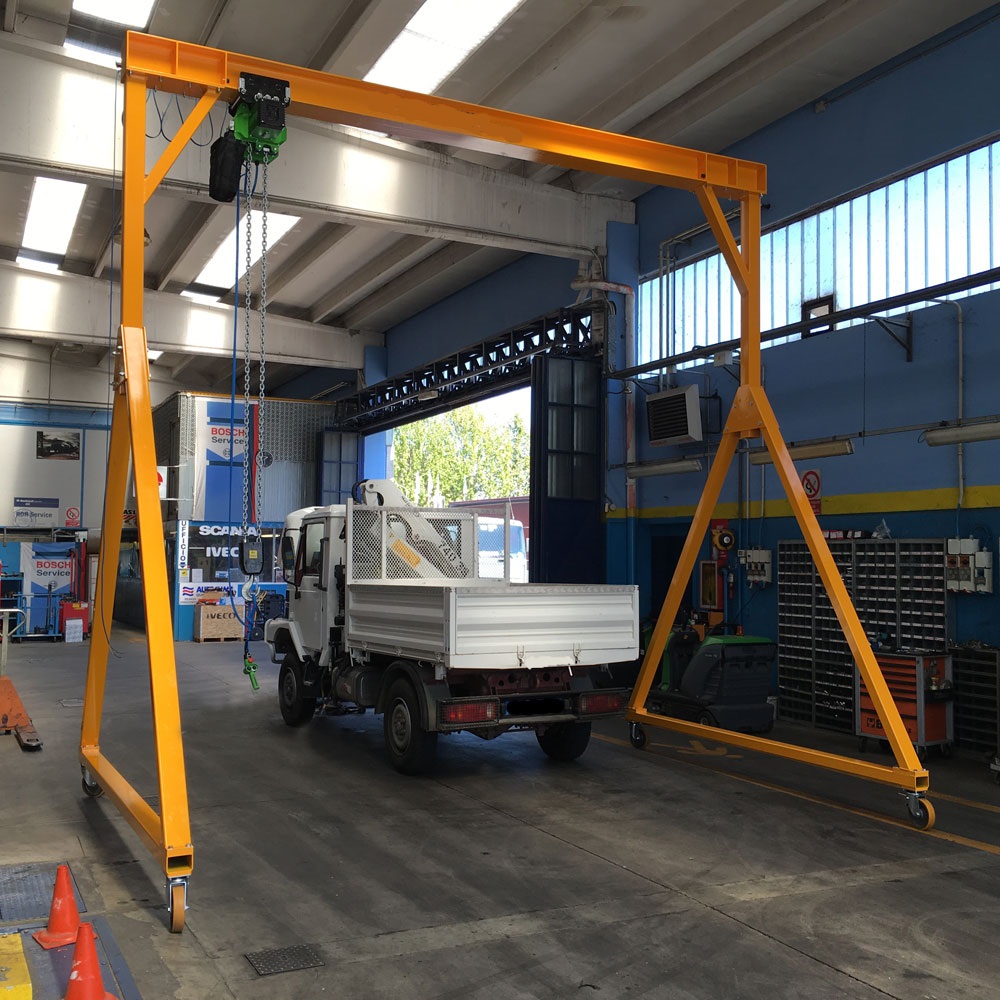

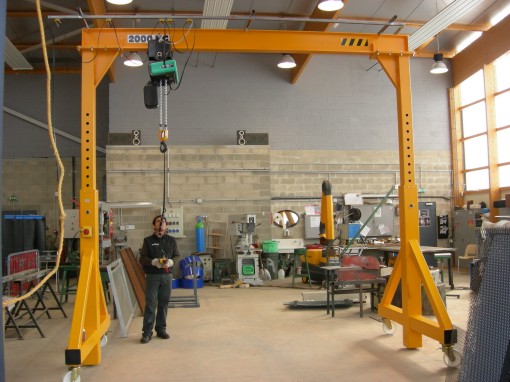

A light portal crane is a mobile structure, in most cases it is equipped with a chain or rope-type hoist with a lifting capacity of up to 5 tons and a lifting height of up to 5 meters. The span of the supporting beam can be up to 7 meters. Some powerful mobile crane models have the function of moving the lifting carriage along the supporting beam. Moving by electric motors or manually.
