HYDRAULIC HAMMER

Strong and wear-resistant
A robust system of working tool bushings that wear out.
No steering rods, no dividing lines of the body.
Simple design, easy to maintain

This product can be installed on the crusher on the main body or on any other device nearby. The parts of the device are easy to use even for beginners

DKB Series

Robust design
Majestic power
Low noise & less vibration

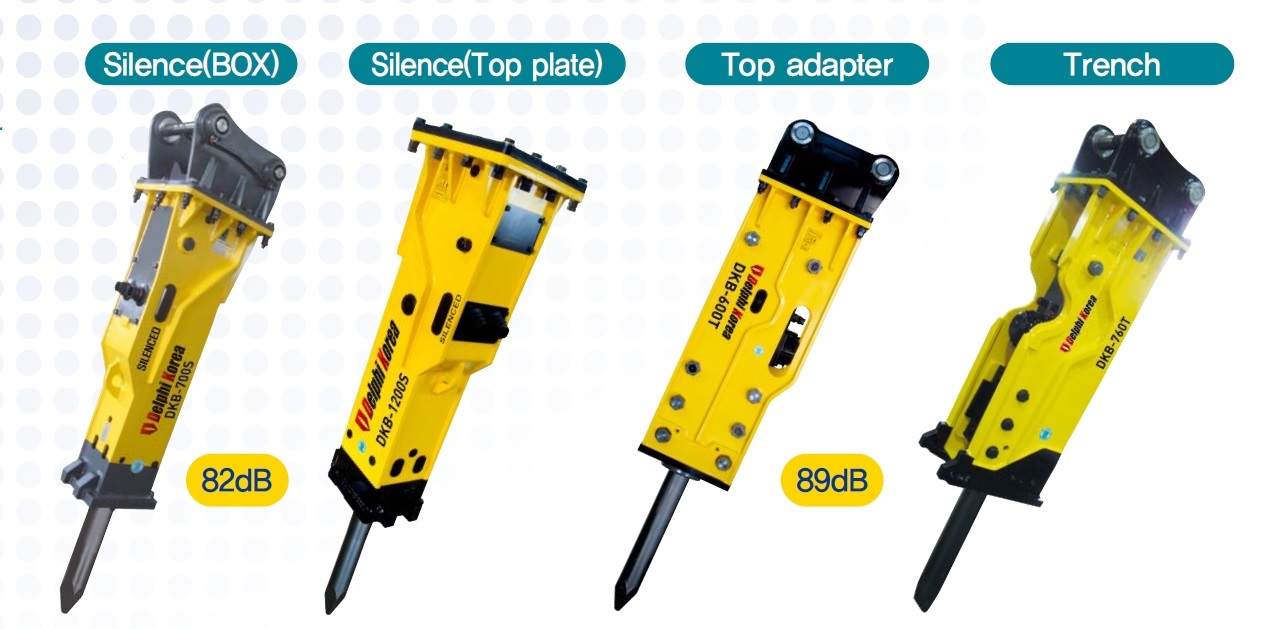

DKB Silence (=Box)type	UNIT	DKB-50S	DKB-70S	DKB-100S	DKB-210S	DKB-300S	DKB-400S	DKB-500S	DKB-600S
Wt	kg	100	134	148	186	304	405	530	880
Wt	Ib	220	295	326	409	625	891	1168	1936
Length	mm	1087	1215	1285	1363	1682	1684	2068	2361
Length	inch	42.8	47.8	50.6	53.7	66.2	66.3	81.4	93
Operating pressure	bar	80~100	100~120	100~120	110~130	140~160	140~160	120~150	150~170
Operating pressure	psi	1160~1450	1450~1740	1450~1740	1595~1885	2031~2321	2031~2321	1707~2133	2176~2466
Required oil flow	ℓ/min	10~20	15~25	25~40	25~45	30~45	40~70	60~100	80~120
	ℓ/min	10~20	15~25	25~40	25~45	30~45	40~70	60~100
	gal/min	2.6~5.3	4.0~6.6	6.6~10.6	6.6~11.9	7.9~11.9	10.8~18.4	15.8~26.4	21.1~31.7
Impact energy	bpm	700~1200	700~1200	550~1000	500~900	500~800	400~800	400~800	400~700
Impact rate	joule	180	254	286	447	620	945	1029	2630
Impact rate	ft-lb	133	187	211	330	457	697	759	1940
Hose diameter	mm	9	12	12	12	12	12	19	19
Hose diameter	inch	3/8	3/8	1/2	1/2	1/2	1/2	3/4	3/4
Tool diameter & weight	mm	36	45	53	60	68	75	85	100
	inch	1.4	1.8	2.0	2.2	2.7	3.0	3.3	3.9
	kg	4	6	10	14	18	26	40	60
Excavator	m3	under 0.04	0.03~0.07	0.06~0.1	0.08~0.2	0.15~0.25	0.2~0.4	0.3~0.5	0.45~0.6
	тонн	0.8~2.5	1.2~3.0	2.5~4.5	3.0~5.5	4.0~7.0	6~9	7~12	11~16
	ft3	under 1.4	under 2.5	2.2~3.5	2.5~7	5.3~8.8	7.0~14.1	10.6~17.7	16~21.2
Ref						s40	s43	s45	s50

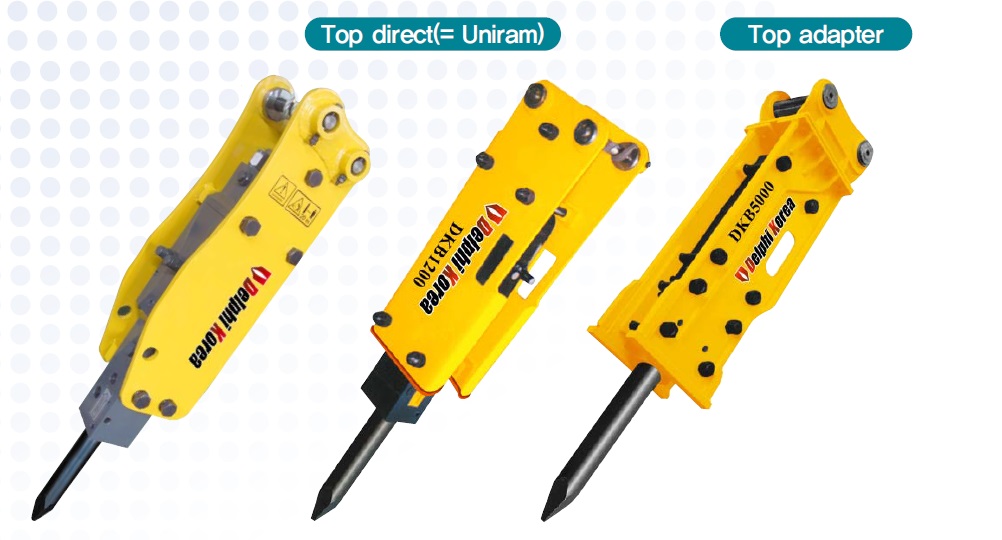

DKB top type

The most productive, innovative and reliable equipment for construction and demolition on construction sites.

DKB TOP	UNIT	DKB-50T	DKB-70T	DKB100T	DKB-210T	DKB-300T	DKB-400T	DKB-500T
WT	кг	70	87	106	178	272	384	508
Height(Incl.Tool)	mm	1050	1146	1230	1288	1491	1613	2115

DKB

TOP

UNIT

DKB-600T

DKB-700T

DKB-760T

DKB-800T

DKB-1200T

DKB-1500T

кг

872

1255

1455

1871

2450

3920

Height(Incl.Tool)

2387

2621

2757

2781

3244

3841

DKB BOX	UNIT	DKB-700S	DKB-760S	DKB-800S	DKB-1200S	DKB-1500S
WT	kg	1307	1462	1903	2495	3957
WT	Ib	2750	3223	4187	5410	8763
Length	mm	2615	2701	2822	3306	3838
Length	inch	103	106.3	111.1	130.2	151.1
Operating pressure	bar	150~180	160~180	160~180	160~180	160~180
Operating pressure	psi	2176~2610	2320~2610	2320~2610	2320~2610	2320~2610
Required oil flow	ℓ/min	100~140	100~150	130~170	170~230	200~300
Required oil flow	gal/min	26~36	26~39.6	34.3~44.9	45~62	52.8~79.3
Speed of influence	bpm	400~600	400~600	400~600	300~400	250~350
Impact rate	joule	4740	5210	6380	10920	14210
Impact rate	ft-lb	3496	3843	4706	8055	10481
Hose diameter	mm	25	25	25	32	32
Hose diameter	inch	1	1	1	1 1/4	1 1/4
Tool diameter & weight	mm	125	135	140	155	175
	inch	4.9	5.3	5.4	6.1	6.9
	kg	97	112	133	180	247
Excavator	м3	0.6~0.7	0.6~0.8	0.7~0.9	0.9~1.1	1.4~2.0
	ton	14~18	16~21	19~26	28~40	42~55
	ft3	18~24	21.2~28.3	25~32	27~34	42.4~60
Ref		s60	s70	s81	s121	s151

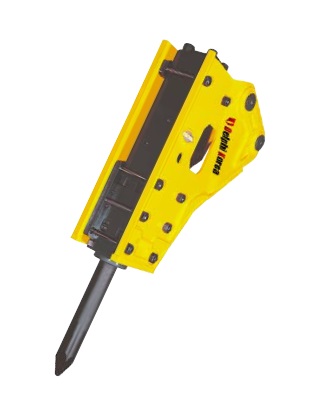

DKB Side type

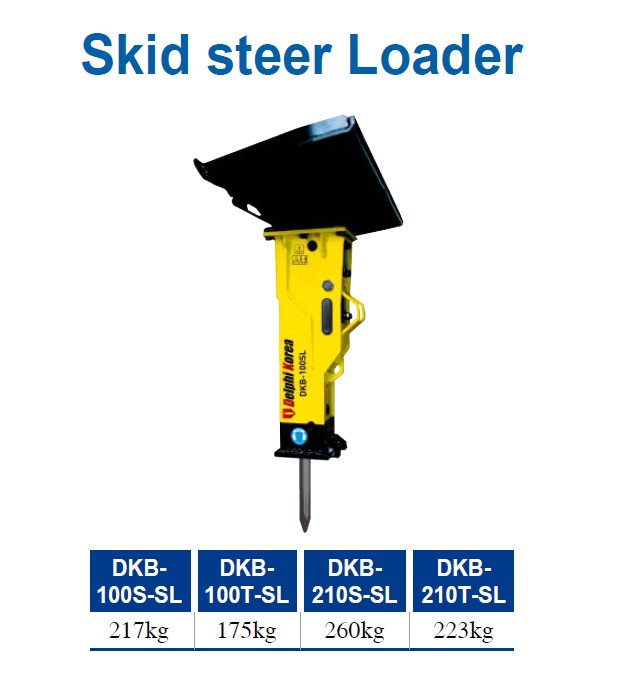

Skid Steer Loader Type

DKB side type	UNIT	DKB-50	DKB-70	DKB-100	DKB-210	DKB-300	DKB-400	DKB-500
Weight	kg	70	85	104	154	264	380	492
Height(Incl.Tool)	mm	899	1010	1074	1124	1312	1366	1728

DKB SIDE	UNIT	DKB-600	DKB-700	DKB-760	DKB-800	DKB-1200	DKB-1500
Weight	kg	853	1260	1410	1989	2460	3753
Height(Incl.Tool)	mm	1927	2155	2289	2337	2736	3236

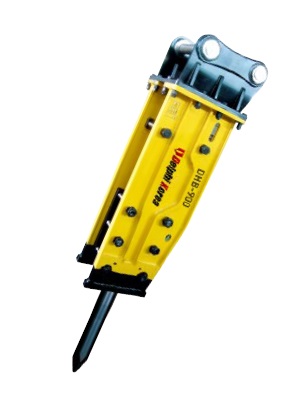

DHB Top type

Designed and engineered to provide maximum performance and meet market needs.

DHB top type	unit	DHB-700T	DHB-800T	DHB-900T	DHB-1400T	DHB-1500T	DHB-2000T
Weight	kg	1252	1668	2380	2960	4064	7251
Length	mm	2510	2775	3062	3265	3854	4385

DHB top type

DHB Side type

DHB Silence type

DHB side type

DHB side type	UNIT	DHB-700	DHB-800	DHB-900	DHB-1400	DHB-1500	DHB-2000
Вага	kg	1269	1684	2394	3085	4010	7180
Length	mm	2040	2290	2571	2737	3249	3792

DHB Silence type

DHB Silence	UNIT	DHB-700S	DHB-800S	DHB-900S	DHB-1400S	DHB-1500S	DHB-2000S
weight	kg	1308	1710	2454	3020	4120	7415
Length	mm	2513	2766	3057	3306	3782	4443
Required oil flow	ℓ/min	90~120	120~160	150~190	170~230	190~270	290~370
Operating pressure	bar	160~180	160~180	160~180	160~180	160~180	190~210
Швидкість впливу	bpm	350~750	400~700	300~550	250~400	200~350	200~400
Impact rate	joules	4250	5830	8250	12110	14870	16740
Impact rate	ft-lb	3135	4300	6085	8932	10968	12347
Tool diameter	mm	120	135	150	160	180	210
Excavator	ton	13~18	16~25	25~32	30~42	45~60	70~100
ref		15g	20g	30g	40g	50g+	100g+

Excavator-loader with on-board rotation

Mini loader

Choice of bit
