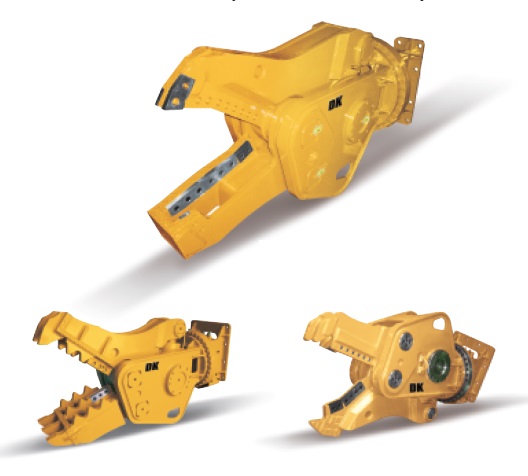

Combination COMBI

Multi–processor (One/Two-point type)

Combination is one-cylinder type of combination-processor for high level performance.

• Three different jaw sets – for shearing , demolition and pulverizing (no crusher)
• Interchangeable jaws offer the flexibility with minimum investment.

Pulverizer	Unit	S230R	D230R	P230R	S330R	D330R	P330R
Operating Weight	kg	2,100	2,000	2,150	2,600	2,700	2,800
Operating Weight	lb	4,630	4,410	4,740	5,732	5,952	6,172
Overall Length	mm	2,148	2,136	2,234	2,250	2,240	2,380
Overall Length	Inch	84.56	84	87.95	88.58	88.19	93.70
Overall Width	mm	1,182	1,249	1,354	1,220	1,280	1,400
Overall Width	Inch	46.54	49	53.31	48.03	50.39	55.12
Max. Opening Width	mm	520	758	880	610	710	910
Max. Opening Width	Inch	20.47	30	34.65	24.02	27.95	35.83
Cutter Length	mm	120 x 4EA	120 x 4EA	200	120 x 4EA	120 x 4EA	200
Cutter Length	Inch	4.72 x 4EA	4.72 x 4EA	7.87	4.72 x 4EA	4.72 x 4EA	7.87
Crushing Force & Cutting Force	ton(A)	63	79	53	85	83	69
	ton(B)	87	117	72	115	118	96
	ton(C)	108	170	97	142	165	125
	ton(D)	172	48	145	217	197	179
	ton(E)	-	-	165	-	-	225
Suitable Excavator	ton	18 ~ 26			26 ~ 32
