Industrial joysticks T 24-60 series are designed for remote control of machines, various machinery and systems. All industrial joysticks controllers of 24-60 series can operate machines or overhead cranes with up to 5 speeds. Each independent joystick lever (1) or (2) has 5-step speed regulation in the four directions for implementing a multi-speed control of overhead cranes or crane beams.

• Two 5-step joysticks, five single-step mechanical pushbuttons,
• Two 3-position switches, two 2-position switches
• On / Off switch and Start button
• Emergency stop button
• LED indicator of the battery power level
• Shockproof housing
• Trouble warning device
• Power supply: four 1.5 Volts Alkaline batteries (AA Size) or accumulators
• Dimensions-: 220 x 110 x 90 mm
• Weight: approx.860 gram (excluding cable and batteries)

• Housing with vibration damper
• 2 connector cables are included (depending on modification)
• Standard power supply: AC 220/380V
• Optional power supply 20-40 VDC
• Trouble warning device
• LED indicator of internal relay outputs
• Optical indication (red light)
• Removable antenna
• Protection against radio interference, integrated Humming code with built-in self-diagnostics and 4.3 million identification codes
• Output Relays: 10A/250VAC; 5А/30 VDC
• Dimensions: 290 x 230 x 70 mm
• Weight: approximately 2.220 gram (excluding wire cable)

Technical specifications:

• Transmission frequency range: 415 ~ 483MHz
• 76 channels, quartz generated
• Operating temp. -30°C to +75°C
• Operating range up to 100 meters
• Protection class IP 65 industrial standard

Joystick / Transmitter specifications:

• Power supply: four 1.5 Volts Alkaline batteries (AA Size) or accumulators
• Transmitter RF power P  10 mW
• Control: two independent joysticks
• Dimensions-: 220 x 110 x 90 mm
• Weight: approx.860 gram (excluding cable and batteries)

Receiver specifications:

• Standard power supply: AC 220/380V
• Output Relays: 10A/250VAC;
• Dimensions: 290 x 230 x 70 mm
• Weight: approximately 2.220 gram (excluding wire cable)

Standard delivery scope includes: Transmitter receiver with pre-wiring cable, handling belt.

External antenna is optional.

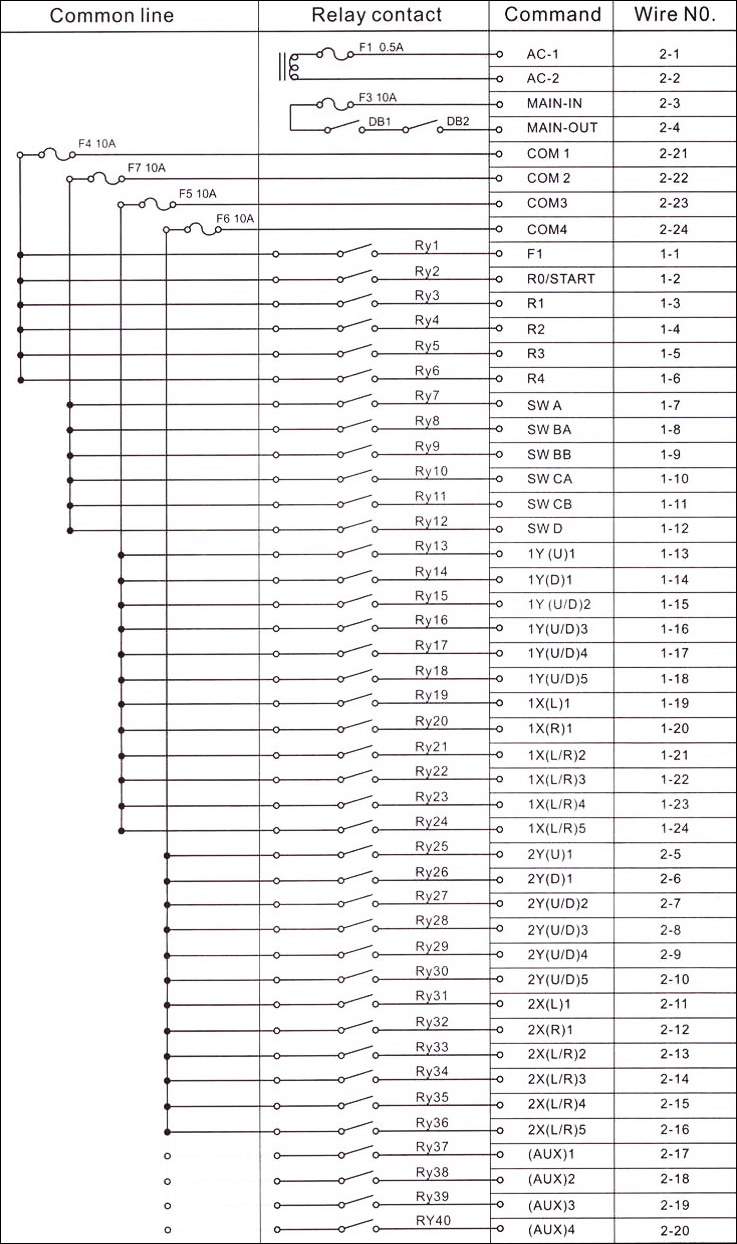

2-1 Power
2-2 Power
2-3 To the control circuit of the main starter
2-4 Control of the main starter
2-21 Power COM 1 (the control voltage)
2-22 Power COM 2 (the control voltage)
2-23 Power COM 3 (the control voltage)
2-24 Power COM 4 (the control voltage)
1-1 button (F1) - when pressed, switches on contacts, but not locked up;
1-2 Start - when “START” button id pressed, contacts are closed and remain locked;
1-3 Button (1) - when pressed, the relay is closed, but not locked;
1-4 Button (2) - when pressed, the relay is closed, but not locked;
1-5 Button (3) - when pressed, the relay is closed, but not locked;
1-6 Button (4) - when pressed, the relay is closed, but not locked;
1-7 Switch (A) to "ON" or "OFF"
1-8 Switch (B) to pos. "A" can be used in A(A+B)-C mode
1-9 Switch (B) in pos. "B" may be used in A(A+B)-C mode
1-10 Switch (C) to pos."A" can be used in A (A+B)-C mode
1-11 Switch (C) to pos."B" may be used in A(A+B)-C mode
1-12 Switch (A) to "ON" or "OFF
1-13 (1) joystick - movement forward 1st speed
1-14 (1) joystick - movement backward 1st speed
1-15 (1) joystick - movement forward / reverse 2nd speed
1-16 (1) joystick - movement forward / backward 3rd speed
1-17 (1) joystick - movement forward / 4th speed
1-18 (1) joystick - movement forward / 5th speed
1-19 (1 joystick - movement to the left 1st speed
1-20 (1) joystick - movement to the right 1st speed
1-21 joystick – movement (1) to the left / right 2nd speed
1-22 joystick – movement (1) to the left / right 3rd speed
1-23 joystick – movement (1) to the left / right 4th speed
1-24 joystick – movement (1) to the left / right 5th speed
2-5 (2) the joystick forward 1st speed
2-6 (2) joystick – movement backward 1st gear
2-7 (2) joystick - movement forward / reverse 2nd speed
2-8 (2) joystick - movement forward / backward third speed
2-9 (2) joystick - movement forward / 4th speed
2-10 (2) joystick - movement forward / 5th speed
2-11 (2) joystick - movement to the left 1st speed
2-12 (2) joystick - movement to the right 1st speed
2-13 joystick - movement (2) to the left / right 2nd speed
2-14 joystick - movement (2) to the left / right 3rd speed
2-15 joystick - movement (2) to the left / right 4th speed
2-16 joystick - movement (2) to the left / right 5th speed
2-17 output (AUX) 1 auxiliary
2-18 output (AUX) 2 auxiliary
2-19 output (AUX) 3 auxiliary
2-20 output (AUX) 4 auxiliary
