System T 24-60 with joysticks is designed for cranes or lifting equipment control.

Transmitter (joystick) is equipped with a wearing belt, which makes it more convenient in use. Low weight, high protection level and long operation range at low power transmitters, will allow you to effectively operate cranes.

Crane remote control system with joysticks allows to synchronously control two cranes by a single console.

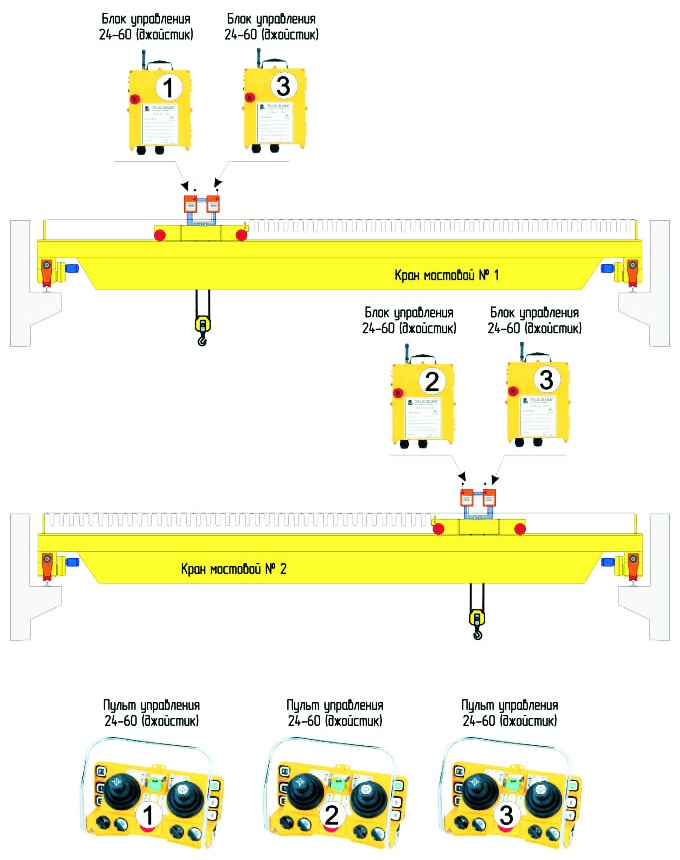

The diagram demonstrates the simplest solution for synchronous control of overhead cranes, if it is required by technological processes in a production facility.

The scheme is implemented with 4 sets of T 24-60 (joysticks):

• Remote control set # 1 is installed on bridge crane # 1
• Remote control set # 2 is installed on bridge crane # 2
• Two remote control sets # 3 are installed on bridge cranes # 1 and # 2
• In two remote control sets # 3 on cranes # 1 and # 2 crystals with the same frequency are installed. These two units are synchronized to work from a single console # 3.

This scheme seems to be the simplest, but it is the safest  one, as thecrane operator, in case of accidental pressing of  the button switching control from one crane to synchronous operations of two cranes, will not be able to control another crane that is out of his sight.
